GRAPE CRUSHER/DESTEMMER mod. ZETA 20/A INOX
WITHOUT ROLLERS

- realized in stainless steel (except some parts made in ABS) and provided with stainless steel pump for transferring the must; this model has a liftable hopper for allowing a simple and easy internal cleaning.

- single-phase motor 230V/50Hz - HP 2
- painted with epoxy powders for foodstuffs

- hopper dimensions:cm. 87,5x50
- overall dimensions: cm. 111,5x63,5x84,5h
- hourly production: 20 Ql. (2.000 Kg)
- weight: 85 Kg


one click to enlarge; two clicks to minimize

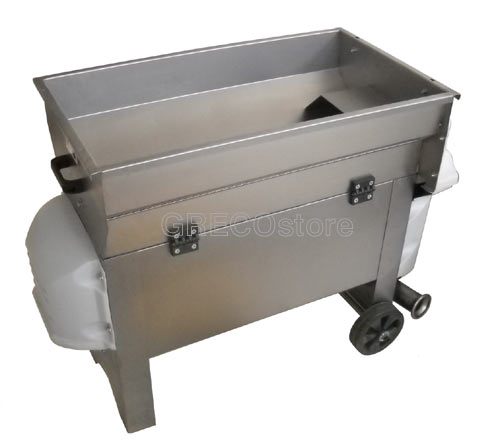

  other view

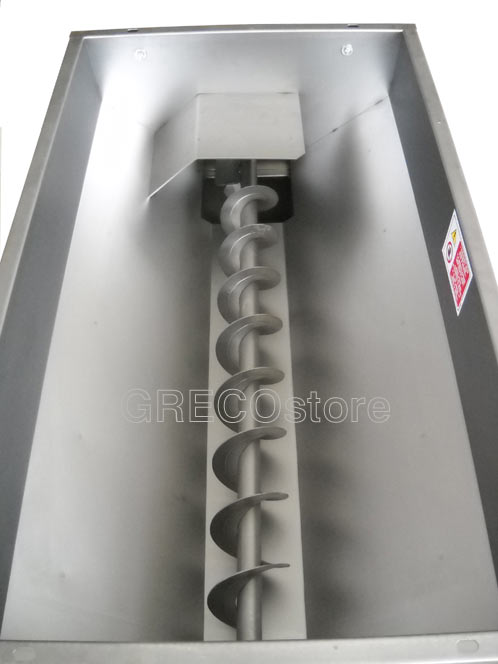

  the hopper with auger and the empty space (without rollers): through this way, grapes falling down in destemmer box.

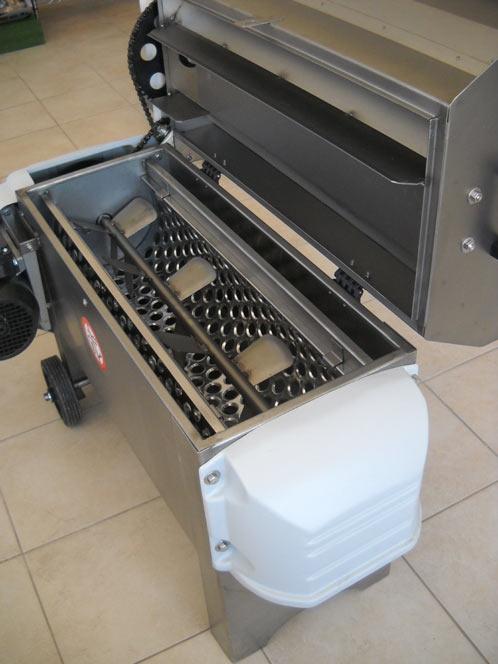

  destemmer box with shaft, paddles and stainless steel grid
